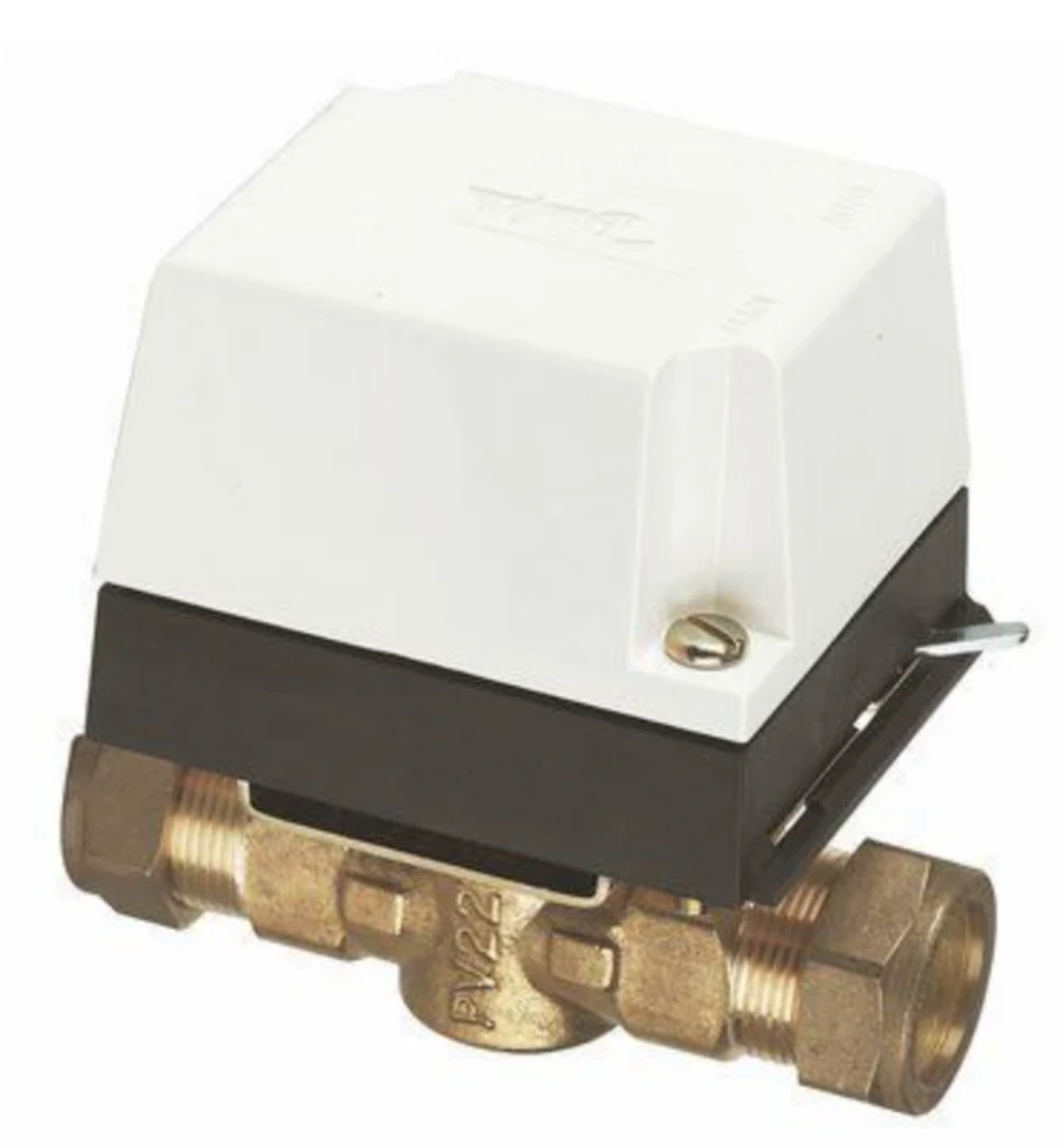

Danfoss HP22 087N6609 Shoe Type Zone Valve

Danfoss HP22 087N6609 Shoe Type Zone Valve

The Danfoss HP22 2 port valve can be used with systems that have 22mm copper and iron pipework. The Danfoss HP22 valve has 2 x self-cleaning positive shut off shoes, which helps the flow to go through the 2 port heat plan in either direction as required.

For central heating and hot water circulation in wet domestic central heating systems.

The H series shoe valves are available in 2 port and 3 port versions in a wide range of sizes for both copper and iron pipework. The high capacity bodies incorporate two self-cleaning positive shut-off shoes. Flow through the 2-port valves can be in either direction.

The spring return actuators have auxiliary switches and one metre of cable with industry standard wire colours. A lever enables the valves to be opened manually, useful when filling the system.

Danfoss valve actuators are designed for direct in-service replacement of actuators on other makes of motorised valves.

Features

• Complete valve and actuator set
• 22mm compression coupling
• 8.20 m³/h 1.000 bar, 230 V
• 2-Port shoe valve (spring return to close)
